What is Corrugated Steel Pipe Arch

Corrugated steel pipe arches are a type of culvert commonly used in infrastructure projects for various applications such as highway drainage, stormwater management, and underground conveyance systems. These structures are renowned for their durability, versatility, and cost-effectiveness. Let's delve deeper into the features and uses of corrugated steel pipe arches.

Structure and Design

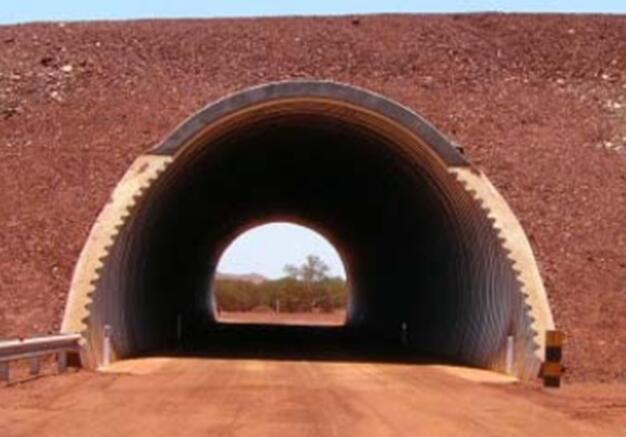

Corrugated steel pipe arches consist of corrugated metal sheets that are assembled to form an arch shape. These sheets are typically made from galvanized steel or aluminum to enhance corrosion resistance and structural integrity. The corrugations provide strength and stiffness to the structure while allowing it to flex and adapt to changing soil conditions.

The design of corrugated steel pipe arches can vary depending on the specific requirements of the project. They come in various shapes and sizes to accommodate different flow rates, soil types, and site constraints. Common shapes include round, elliptical, and horseshoe arches, each offering unique advantages for specific applications.

Applications

Corrugated steel pipe arches are widely used in civil engineering and construction projects due to their versatility and reliability. Some common applications include:

Highway Drainage: Corrugated steel pipe arches are often used as culverts to facilitate the passage of water beneath highways and roads. They help prevent flooding and erosion by efficiently conveying stormwater away from the roadway.

Stormwater Management: These structures play a crucial role in stormwater management systems, allowing for the safe conveyance and storage of excess rainwater. They can be incorporated into retention ponds, detention basins, or underground drainage networks to mitigate the impact of heavy rainfall events.

Bridge Abutments: Corrugated steel pipe arches can also be used as bridge abutments to support the ends of bridges and viaducts. Their robust construction and ability to withstand heavy loads make them suitable for this application, providing a stable foundation for bridge structures.

Utility Conduits: In addition to drainage applications, corrugated steel pipe arches are often utilized as conduits for utilities such as sewer lines, water mains, and telecommunications cables. Their strength and durability make them an ideal choice for protecting and enclosing underground infrastructure.

Advantages

Corrugated steel pipe arches offer several advantages over alternative materials such as concrete or plastic. Some of the key benefits include:

Durability: Steel is inherently durable and resistant to corrosion, ensuring that corrugated steel pipe arches have a long service life even in harsh environmental conditions.

Strength: The corrugated design provides excellent strength-to-weight ratio, allowing the structure to withstand heavy loads without deformation or failure.

Flexibility: Corrugated steel pipe arches can flex and adapt to ground movement and settlement, reducing the risk of damage or collapse over time.

Cost-Effectiveness: Compared to traditional materials, such as concrete, steel pipe arches are often more cost-effective to manufacture, transport, and install, resulting in overall savings for the project.

Conclusion

In summary, corrugated steel pipe arches are versatile, durable, and cost-effective solutions for a wide range of civil engineering and construction applications. Their robust construction, flexibility, and corrosion resistance make them ideal for use in highway drainage, stormwater management, bridge abutments, and utility conduits.

For further inquiries about corrugated steel pipe arches or to find a reliable supplier, please feel free to contact us.
