Project
Large Span Corrugated Steel Culvert
In a construction project in China, we are utilizing Large Span Corrugated Steel Culverts, widely employed in drainage, ventilation, river crossing, and other scenarios in projects such as roads, railways, and bridges. These culverts offer excellent load-bearing capacity and stability, ensuring smooth operation and long-term durability of the infrastructure.
Section Size: span 15.3m, rise 10.6m
Corrugation: 381X140mm
Steel Thickness: 10mm
Culvert Length: 10m
Filling Back height: 3m
Large Span Corrugated Steel Bridge
In a construction project, we are using Large Span Corrugated Steel Bridges, which are characterized by the following parameters:
Section Size: span 20m, rise 3.8m
Corrugation: 381X140mm
Steel Thickness: 10mm
Filling Back height: 1.5m
Large Span Corrugated Steel Underpass
Section Size: span 14.5m, rise 10.3m
Corrugation: 381X140mm
Steel Thickness: 10mm
Filling Back height: 3-4m
Large Span Corrugated Steel Arch for Gas Pipeline Protection
Section Size: span 15m, rise 7.5m
Corrugation: 381X140mm
Steel Thickness: 9mm
Filling Back height: 4-5m
Large Span Corrugated Steel Culvert for Tunnel End
Section Size: span 10m, rise 10m
Corrugation: 381X140mm
Steel Thickness: 7mm
Culvert Length: 75m
Filling Back height: 5m

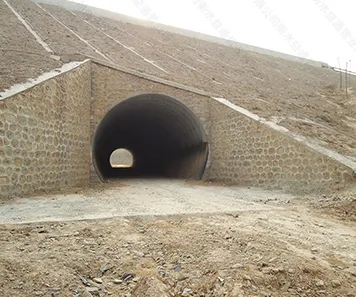

Large Span Corrugated Steel Culvert Fast Construction Low Cost
Section Size: span 6m, rise 6m
Corrugation: 200X55mm
Steel Thickness: 7mm
Culvert Length: 118m
Filling Back height: 15m
