Project
Long Distance Drainage Projection in Mine Are
Section Size: Diameter 2m, 2.5m, 3m
Corrugation: 200X55mm
Steel Thickness: 6-8mm
Culvert Length: 2300m
Filling Back height: 3-10m
Storm Water Stock Engineering
Section Size: Diameter 2.62
Corrugation: 230X64mm
Steel Thickness: 3mm
Filling Back height: 1.5-2.5m

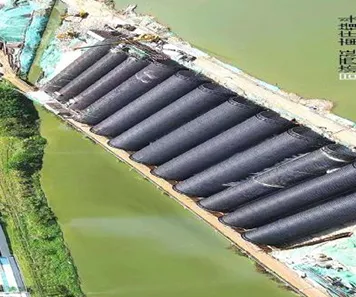

12 Culverts to Be a Bridge
Section Size: Span 11m, rise 7.77m
Corrugation: 381X140mm
Steel Thickness:10mm
Filling Back height: 1.5-2.5m
Storm Drainage Culvert
Section Size: Span 4m, Rise 3.3m
Corrugation: 381X140mm
Steel Thickness: 6mm
Filling Back height: 0.8-1.2m

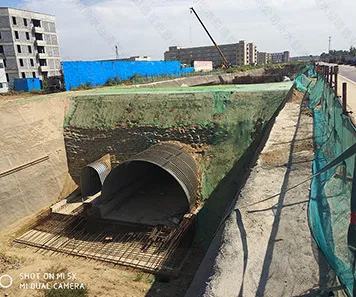

Utility Tunnel, Fast Construction, Low Cost, Environment Protection
Section Size: Span 6.5m, Rise 3.25m
Corrugation: 200X55mm
Steel Thickness: 6mm
Culvert Length: 1800m
Filling Back height: 3m

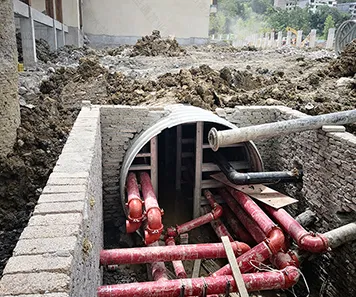

Cable Tunnel
Section Size: Diameter 2m
Corrugation: 200X55mm
Steel Thickness: 5mm
Culvert Length: 180m
Filling Back height: 2-3m
